HK2M-H172.3 2-Megapixel Outdoor Wide Dynamic Backlight-Resistant Dual-Eye Camera Module

Product Categories
Shenzhen Jupin Technology Co., Ltd.
Contact Now

HK2M-H172.3 2-Megapixel Outdoor Wide Dynamic Backlight-Resistant Dual-Eye Camera Module

Brand Name : Shi Zun

Model Number : HK2M-H172.3

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T

Supply Ability : 100+pcs+day

Delivery Time : 10 working days

Packaging Details : 92mmx 18mmx 18.4mm

Keywords : Dual-Eye Camera Module

Photosensitive chip : RGB CMOS 1/2.7"/ IR CMOS 1/2.7”

Pixel Size : 3.0μm x3.0μm

SNR max : 41 dB/ TBD dB

Max Dynamicrange : 105 dB/ TBD dB

Minimum illumination : 0.1Lux at F12

F/No : 2.4

EFL : 2.9mm

FOV : 95°

IR : 650±10nm/ 850±10nm

Lens Construction : 2G4P+IR

Maximum resolution and frame rate : 1920* 1080(30ps)

Other optional resolution ratio : 640* 480 (30fps), 800* 600(30fps), 1280* 720(30fps)

Support format : YUV / MJPG

USB power supply voltage : 5V±5%

Connect the interface : 2* USB-5pin-1.0mm

Interface speed : 480mb/s

Operating systemrequest : WinXP, Win7, Linux or Vista and android4.1

Power Consumption : Regular work: 2W

storage temperature : 0°C to 50°C

Working temperature : -10°C to+60°

structure size : 92mmx 18mmx 18.4mm

Contact Now

HK2M-H172.3 2-Megapixel Outdoor Wide Dynamic Backlight-Resistant Dual-Eye Camera Module

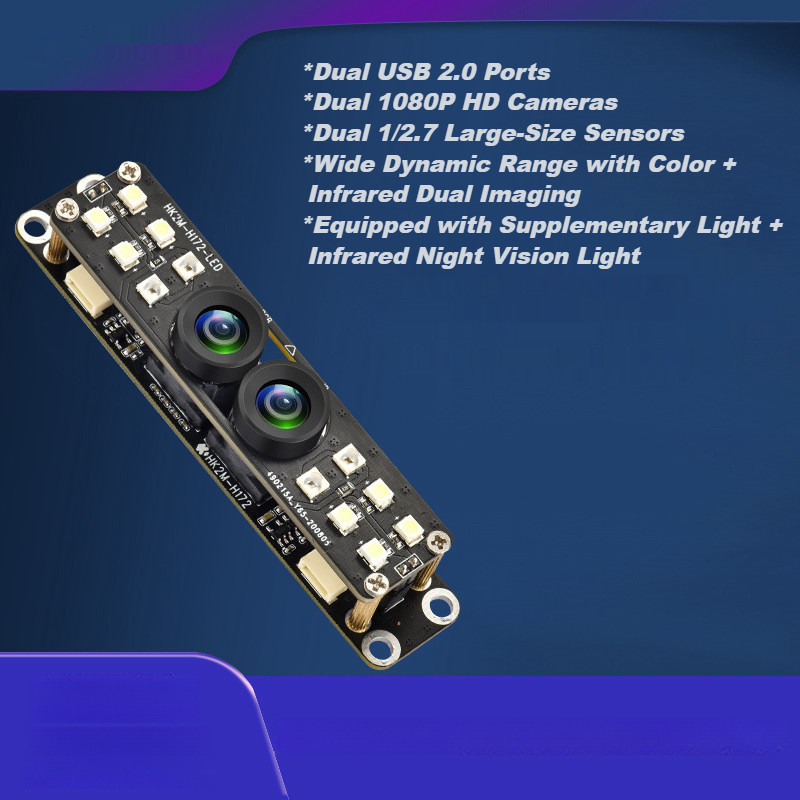

HK2M-H172.3 Dual-Eye Camera Module Features:

  1. Dual USB 2.0 Interfaces
  2. Suitable for Face Feature Detection
  3. Plug and Play
  4. Dual 1080P High-Definition Cameras
  5. Frame Rate Up to 30 FPS, CE Ensures Maximum Image Clarity and Detail

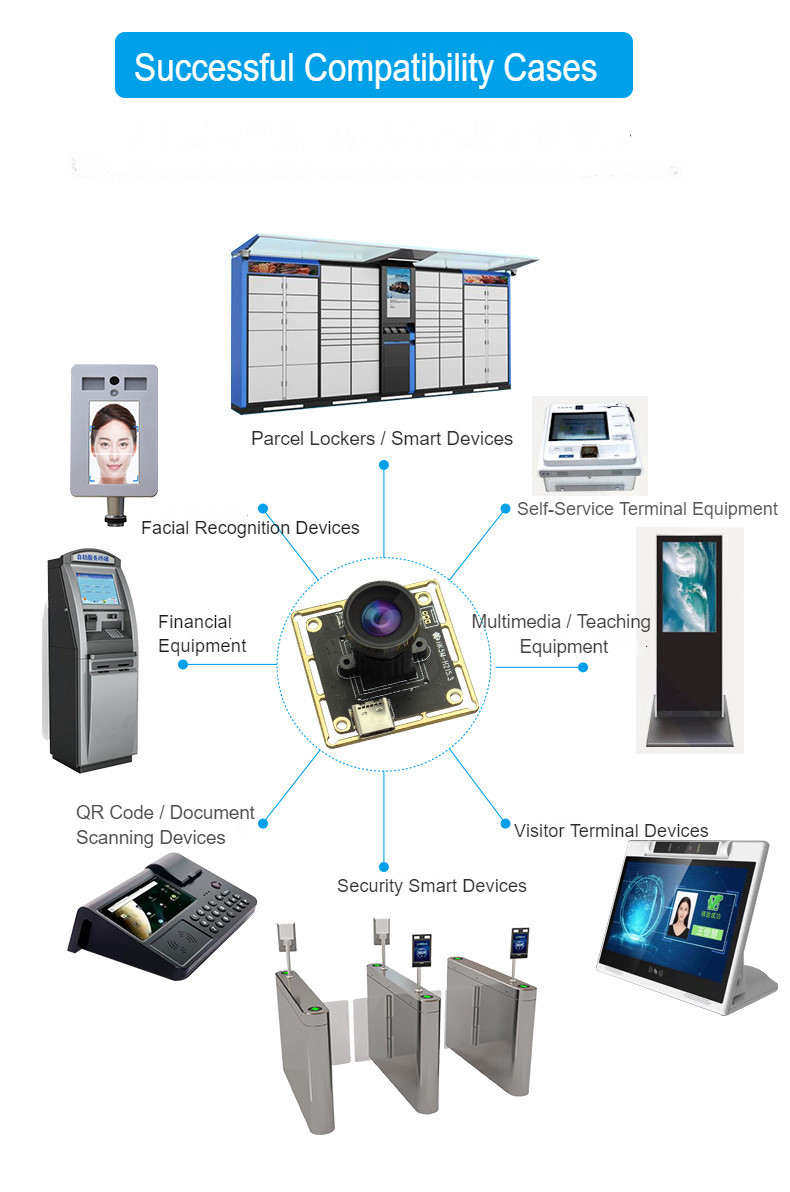

  6. Suitable for Various Industrial Control, Intelligent Self-Service Terminals, Face Recognition Access Control, Security Equipment, and Other Scenarios
  7. Large Aperture/Long Depth of Field, Focal Length Options Available
  8. Wide Dynamic Color + Infrared Dual Imaging
  9. Stable Image
  10. Backlight Compensation
  11. USB Data Connection Interface

HK2M-H172.3 Dual-Eye Camera Module Parameter:

Connect the interface: 2* USB-5pin-1.0mm
Interface speed: 480mb/s
Maximum resolution and frame rate: 1920* 1080(30ps)
Other optional resolution ratio: 640* 480 (30fps), 800* 600(30fps), 1280* 720(30fps)
Support format: YUV/ MJPG
Max Dynamic range: 105 dB/ TBD dB
F/No: 2.4
EFL: 2.5mm
FOV: 95°
Lens Construction: 2G4P+IR
Power Consumption: Regular work: 2W
Operating systemrequest: WinXP, Win7, Linux or Vista and android4.1
