JP1107 Portrait Screen Face and QR Code Recognition Access Control Device supports 100,000 facial templates, 500,000 cards

Product Categories
Shenzhen Jupin Technology Co., Ltd.
Contact Now

JP1107 Portrait Screen Face and QR Code Recognition Access Control Device supports 100,000 facial templates, 500,000 cards

Brand Name : Shi Zun

Model Number : JP1107

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Supply Ability : 100+pcs+day

Delivery Time : 10 working days

Packaging Details : 10.1 inches

Payment Terms : T/T

Operating System : RK 3568, Quad-core CPU, 2.0 GHz, Android 11

Configuration : 2GB RAM + 16GB Storage

LCD Screen Size : 10.1 inches

Resolution : 1280 × 800

Viewing Angle : R/L 178° full-view angle

Brightness : 500 cd

Touchscreen : 10-point capacitive touch

Camera : Dual-lens 2MP HD, wide dynamic range, supports liveness detection, shooting distance: 0.4–2m

Card Reader : Optional IC/ID card reader, reading time <1s, reading distance: 0–30mm

Supplementary Light : White light

Speakers : 8Ω, 3W × 2

Microphone : Optional

Operating Parameters : Voltage: 12V Current: 3A Operating Temperature: -20 to 70℃ Humidity: 5–90% RH

External Interfaces : 2 USB ports 1 RJ45 port 1 DC input 1 TF card slot and SIM card slot HDMI Supports external 485/232/relay connections

Surface Material : Tempered glass front

Body Design : Aluminum alloy frame + sheet metal back shell

Installation Method : Wall-mounted

Color : Black + Silver

Contact Now

JP1107 Portrait Screen Face and QR Code Recognition Access Control Device supports 100,000 facial templates, 500,000 cards

Product Overview:

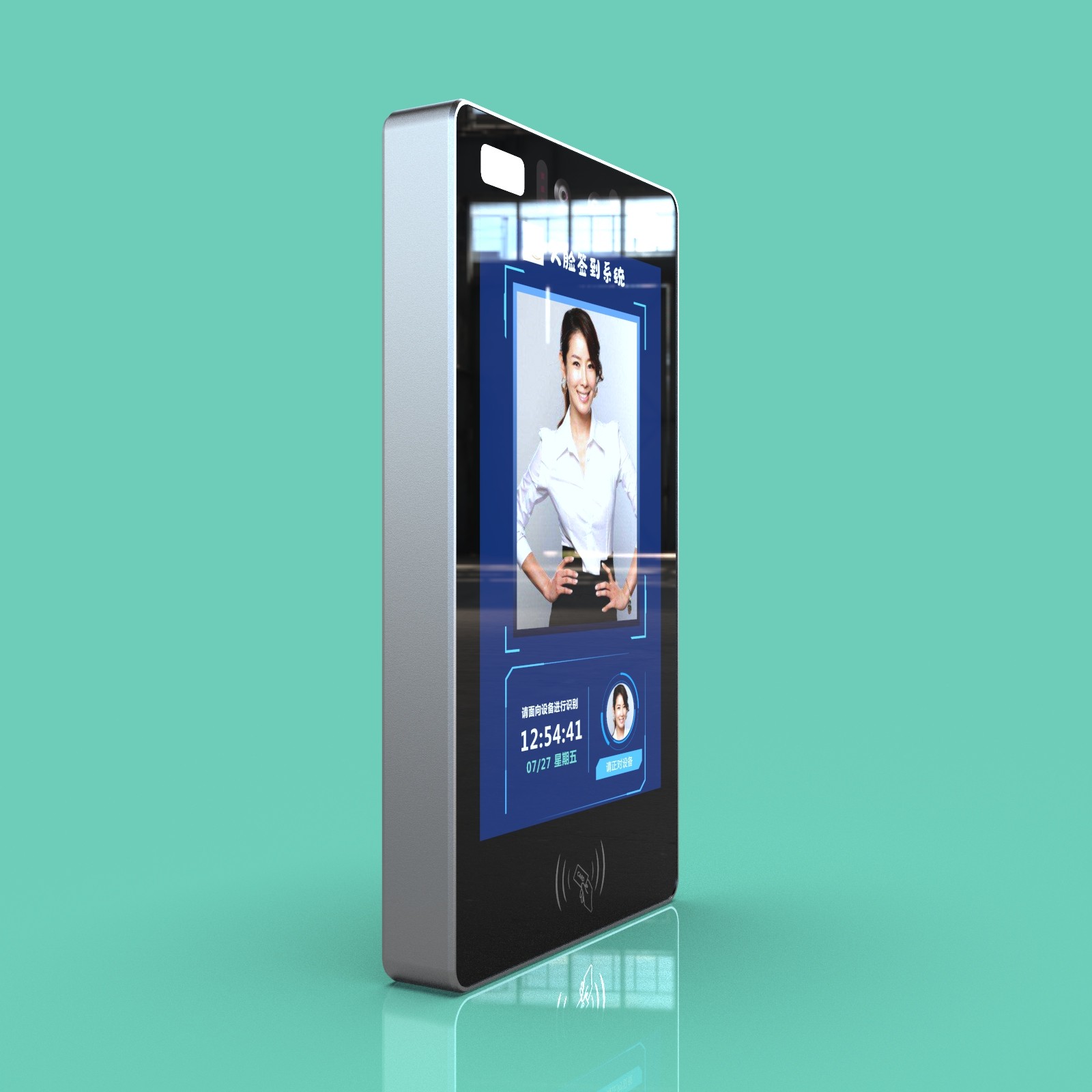

This 10-inch portrait screen access control device integrates facial recognition and QR code scanning technologies. Powered by the Android operating system, it offers an open platform that supports secondary development to meet diverse user requirements.

Technical Features:

  1. Operating System: Equipped with Android 11 OS, providing a stable environment and rich application ecosystem.
  2. High-Definition Display: Features a 10-inch IPS full-view HD touchscreen with a resolution of 800×1280, ensuring clear image display.
  3. Dual-Lens Camera: 2MP wide dynamic dual-lens camera supports facial recognition in low-light or no-light conditions.
  4. Multiple Authentication Methods: Supports facial recognition, QR code scanning, card swiping (IC cards, mobile NFC cards, CPU cards), and password authentication. External ID card modules can be connected.
  5. Large Storage Capacity: Locally supports 100,000 facial templates, 500,000 cards, and 500,000 event records.
  6. Liveness Detection: Provides liveness detection, effectively preventing attacks such as face swaps, videos, or high-resolution portrait photos.
  7. Fast Recognition: Powered by deep learning algorithms, the facial recognition speed is less than 0.2 seconds with an accuracy rate of ≥99%.
  8. Network Connectivity: Supports wired connections with optional WiFi or 4G for convenient network management.

Application Advantages:

  • Security: Combines facial recognition and QR code scanning technologies for advanced security.
  • Convenience: Users can pass through quickly using facial recognition without carrying access cards.
  • Flexibility: Supports various authentication methods to meet different user needs.
  • Ease of Management: Enables web-based management for personnel control, parameter configuration, and event tracking.

Application Scenarios:
Ideal for office buildings, schools, industrial parks, residential communities, factories, and public venues.

This 10-inch portrait screen face and QR code recognition access control device delivers fast recognition speed, broad applicability, enhanced security, and precise authentication, providing users with a convenient and secure identity verification solution.

Operating System: RK 3568 CPU, Quad-Core, 2.0 GHz, Android 11 Configuration: 2GB RAM + 16GB storage
LCD Screen Size: 10.1 inches Screen Resolution: 1280 × 800
Viewing Angle: R/L 178° full viewing angle Brightness: 500 cd
Camera: 2MP dual-lens HD, wide dynamic range, supports liveness detection, shooting distance 0.4–2 meters Card Reader​: Optional IC/ID card reader, reading time <1s, reading distance: 0–30mm
Microphone: Optional Working Parameters: Voltage: 12V, Current: 3A
Operating Temperature: -20°C to 70°C
Humidity: 5% to 90% RH
External Interfaces:

2 USB ports

1 RJ45 port

1 DC input

1 TF card slot and SIM card slot

HDMI

Supports external 485/232/relay connections

 Body Craftsmanship: Aluminum alloy frame + sheet metal back shell
Surface Material: Tempered glass front panel Installation Methods: Wall-mounted

JP1107 Portrait Screen Face and QR Code Recognition Access Control Device supports 100,000 facial templates, 500,000 cardsJP1107 Portrait Screen Face and QR Code Recognition Access Control Device supports 100,000 facial templates, 500,000 cardsJP1107 Portrait Screen Face and QR Code Recognition Access Control Device supports 100,000 facial templates, 500,000 cardsJP1107 Portrait Screen Face and QR Code Recognition Access Control Device supports 100,000 facial templates, 500,000 cardsJP1107 Portrait Screen Face and QR Code Recognition Access Control Device supports 100,000 facial templates, 500,000 cards
